Heating Controls Fault Finding in South Molton – When the Real Fault Isn’t What You Expect

Modern heating systems rely on a combination of electrical controls, thermostats, motorised valves and wiring all working together correctly. When one component develops a fault, the symptoms can often appear to point towards an entirely different issue.

We were recently called to a property near South Molton where the heating and hot water system appeared to be running continuously. The customer had already had the motorised valves replaced, as these are a common cause of heating control problems. However, despite the replacement, the fault remained.

This is a good example of why accurate diagnosis is often more important than simply replacing parts.

Initial heating fault finding carried out at the South Molton property

When investigating heating control faults, it’s important to understand how the entire system is intended to operate before focusing on individual components.

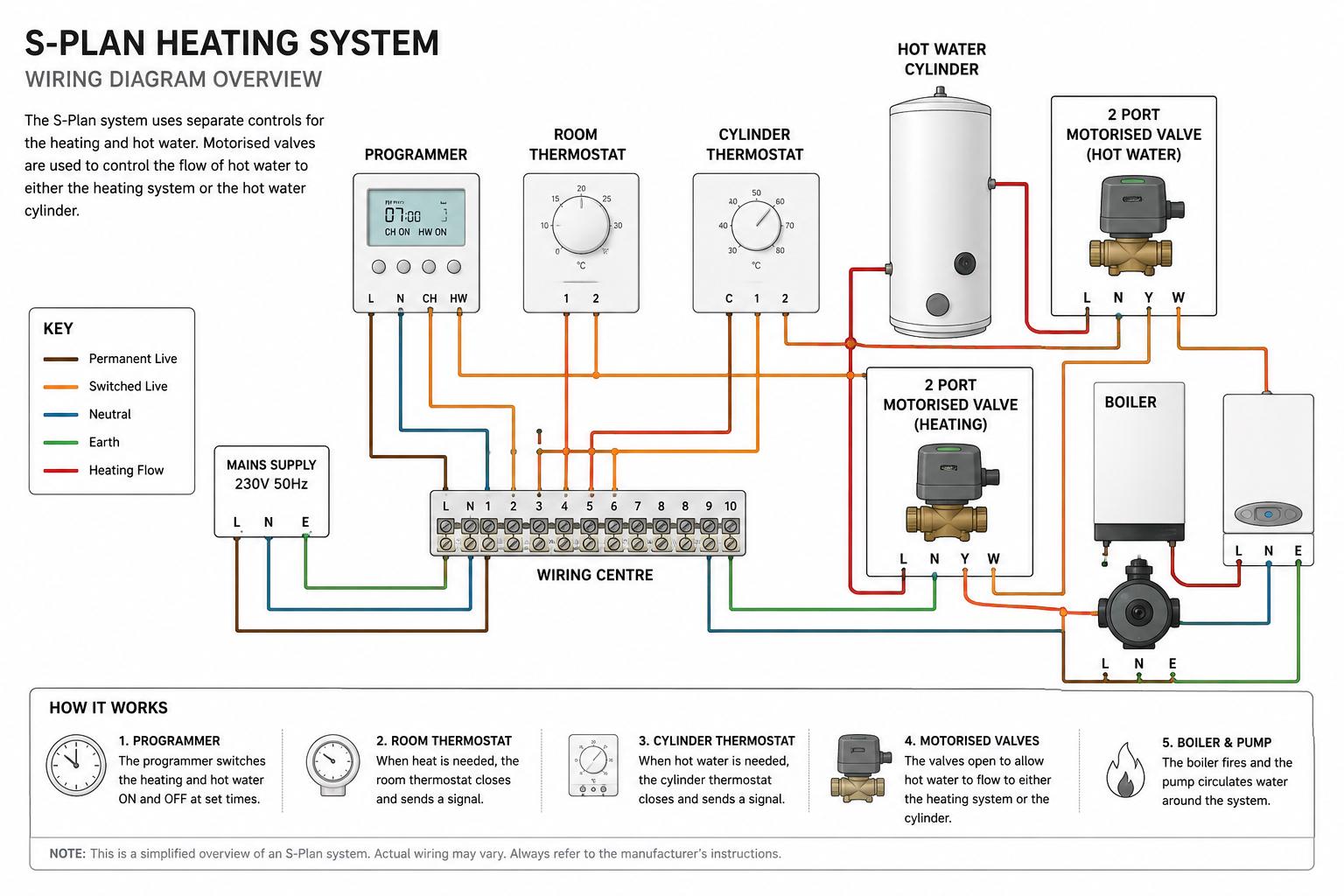

The system in question was an S-Plan heating system, which uses motorised valves, thermostats and electrical controls to regulate both heating and hot water demand.

At first glance, the previously replaced motorised valves appeared to be the likely cause. However, as testing progressed, one detail stood out.

The customer mentioned that the hot water from the taps was becoming excessively hot.

This observation proved to be a key clue in identifying the real source of the problem.

Cylinder thermostat fault identified during heating controls investigation

Excessively hot water often indicates that the hot water cylinder is not regulating temperature correctly.

Further testing of the heating controls confirmed that the cylinder thermostat had failed and was continually calling for heat. Because the thermostat was not signalling that the desired temperature had been reached, the system never received the instruction to stop heating the cylinder.

As a result:

• The boiler continued running unnecessarily
• The hot water cylinder temperature continued to rise
• The system appeared to be permanently calling for heat

While the symptoms initially appeared similar to a motorised valve fault, the underlying issue was actually within the cylinder thermostat itself.

Restoring the heating system to normal operation

Once the faulty thermostat had been identified, a replacement unit was sourced and installed.

Following installation:

• The thermostat operation was verified
• The heating controls were tested
• The hot water system was checked through a full operating cycle

With the faulty thermostat replaced, the system returned to normal operation and was able to regulate temperature correctly once again.

Why heating controls fault finding requires a structured approach

Heating control systems have become increasingly sophisticated over the years.

A typical domestic system may include:

• Cylinder thermostats
• Room thermostats
• Motorised valves
• Wiring centres
• Timers and programmers
• Boiler interlock controls

Because all of these components interact with each other, faults can often mimic other problems.

This is why effective fault finding is not simply about replacing the most common failed component. A structured testing process is needed to identify the true cause of the issue and avoid unnecessary expense.

In summary – heating controls fault finding in South Molton

This recent fault finding project near South Molton highlights the importance of accurate diagnosis when dealing with heating and hot water control systems.

Although the symptoms initially appeared to point towards motorised valves, further investigation identified a faulty cylinder thermostat that was continually calling for heat.

By carrying out a structured fault-finding process, the correct fault was identified, the faulty component replaced, and the system restored to normal operation.

For homeowners across South Molton and the surrounding area, heating control faults are often more complex than they first appear, making proper diagnosis an essential part of any repair.
